tubi dello scambiatore di calore

H/HH Type High-Frequency Welded Fin Tubes for Heat Exchangers H/HH type high-frequency welded finned tubes are rectangular (H-shaped) or double-rectangular (HH) plate-finned tubes used as compact, high-efficiency heat-transfer elements in economizers, air preheaters and other gas-to-fluid heat exchangers. Two steel plates are resistance-welded to opposite sides of a round base tube, forming an “H” cross-section that greatly increases external surface area while creating

Helical Finned Tube — Continuously Welded Spiral ND Steel Fin Tube for Boiler Economizers Material A high-frequency resistance welded helical/spiral finned tube produced with an ND steel (09CrCuSb) base tube and optional ND/carbon/stainless fin strip. ND steel is a Cu–Sb–Cr–alloyed low-alloy steel engineered to resist low-temperature sulfuric-acid dew-point corrosion and chloride attack in flue-gas paths, making it ideal for boiler economizers and air preheaters. Specificatio

Spiral Finned Tube Welded Helical Serrated Finned Tubes For Industrial Heat Exchangers Material The Spiral Finned Tube, also known as a Welded Helical Serrated Finned Tube, is a type of enhanced heat transfer component made by welding helical fins to the surface of a base tube. The base tube is typically manufactured from carbon steel, stainless steel, or alloy steel, while the fins are usually made from the same or compatible materials. The fins are helically wound and

H-Type Finned Tubes – High-Frequency Welded (HFW) Finned Tubes for Industrial Radiators Material The H-type finned tube described here is a high-efficiency heat-exchanger component. It consists of a base tube (commonly carbon steel, alloy steel or stainless steel) onto which fins are welded by high-frequency resistance welding (HFW). The fins (flat, serrated or H-type geometry) are wound or pressed onto the outer surface of the tube and welded continuously, creating a tight

Products Description TORICH ASTM A213 304 316 Stainless Steel Fin Tube 1100 Aluminum Fin Embedded Standard ASTM A213, ASTM A178, ASTM A179, ASTM A192 etc Fin Material Aluminum, Copper Alloy, Stainless Steel, Carbon Steel Finned Extruded fin, Spiral fin, Embedded G fin, Low fin, H fin, L fin etc Base Tube Copper, Aluminum, Steel, Monel, etc Application Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to

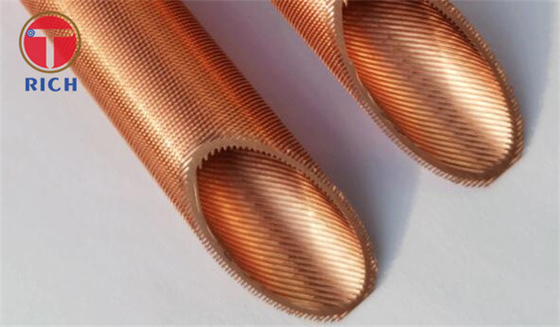

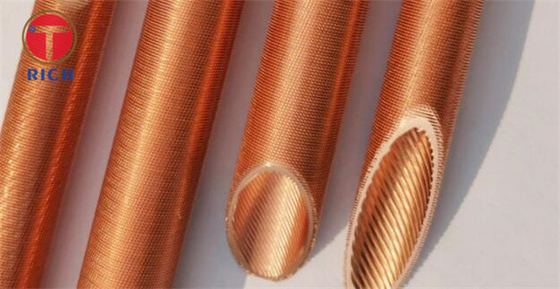

Products Description TORICH Extruded Embedded Type Longitudinal Spiral/Square Heat Exchanger Coil Aluminium Copper Fin Tube for Radiators Evaporator Material C10200, C11000 Etc Size Fin Thickness: 0.1-2mm; Tube OD: 8-55mm; Length: max 12m Fin Pitch Customize Surface Copper Coated End protector Plain End / Beveled End Application For Heat Exchanger Test Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test Quick

Products Description TORICH GB/T19447 C10200 Copper Alloy Steel Pipe Fin Tube with Integral Fins for Heat Exchanger Material C10200, C11000 Etc Size Fin Thickness: 0.1-2mm; Tube OD: 8-55mm; Length: max 12m Fin Pitch Customize Surface Copper Coated End protector Plain End / Beveled End Application Oil&Gas Well Drilling, For Heat Exchanger Test Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test Quick Detail: Low

Embedded Fin Tube – Carbon Steel “G-Type” Finned Pipe for Heat Exchangers Material The product is a G-type embedded finned tube , consisting of a carbon steel base tube and mechanically embedded helical fins. The fins can be made from aluminum, copper, stainless steel, or carbon steel , depending on service temperature, corrosion conditions, and thermal conductivity requirements. The embedded structure ensures excellent fin-to-tube bonding and enhanced heat transfer

Products Description TORICH ASME SA179 Annealed Seamless Heat Exchanger Tubes Finned Aluminum Tubing Standard ASTM A213, ASTM A178, ASTM A179, ASTM A192 ASTM A106 etc Size OD: 5-304.8mm, WT: 3-24.5mm, Length: 2-12m Fin Material Aluminum, Copper Alloy, Stainless Steel, Carbon Steel Finned Extruded fin, Spiral fin, Embedded G fin, Low fin, H fin, L fin etc Base Tube Copper, Aluminum, Steel, Monel, etc Application Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid
