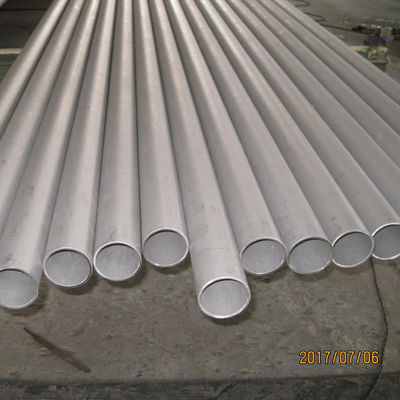

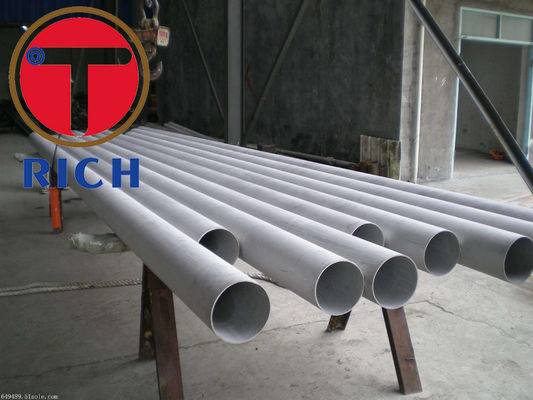

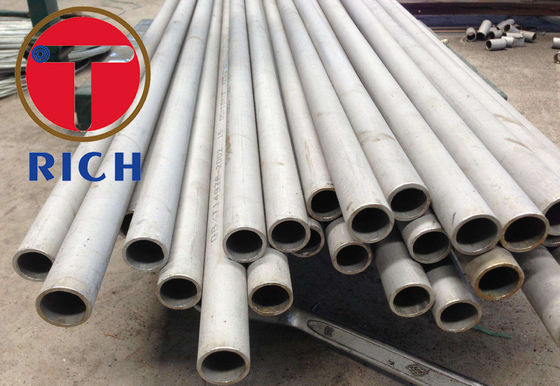

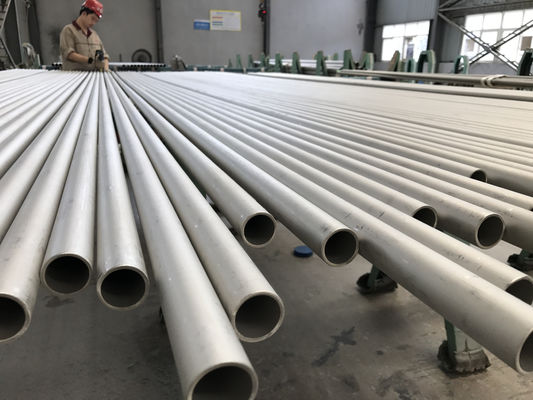

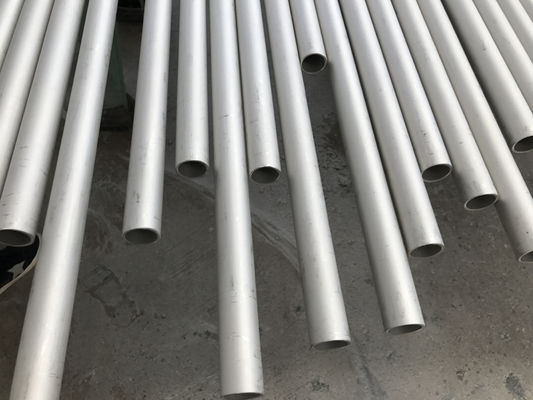

DN200 ASTM metropolitana di acciaio inossidabile del duplex F51/F55/F53/F60 di A790
Proprietà di base
Luogo di origine:
La Cina
Marchio:
Torich
Certificazione:
ISO9001 ISO14001 TS16949
Numero di modello:
ASTM A790
Proprietà Commerciali
Quantità minima di ordine:
5 tonnellate
Prezzo:
Negoticable
Condizioni di pagamento:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:
500 tonnellate al mese
Riepilogo Prodotto
DN200 ASTM A790 F51 / F55 / F53 / F60 Tubo duplex in acciaio inossidabile Nome del prodotto: DN200 ASTM A790 F51 / F55 / F53 / F60 Tubo duplex in acciaio inossidabile Norme: ASTMA790 Materiale: SS201/301/302/321/304/304L/314/316/316L/310/310S/430 Duplex UNS S31803/S32205/S32750/S32760 ecc. ...
Dettagli del prodotto
Evidenziare:
Tubo in acciaio inossidabile duplex DN200
,F51 Tubo in acciaio inossidabile duplex
Product Name:
DN200 ASTM metropolitana di acciaio inossidabile del duplex F51/F55/F53/F60 di A790
Keyword:
tubo d'acciaio duplex
Type:
senza cuciture e saldato
Shape:
giro
Length:
Secondo il cliente richiesto
Material:
SS201/301/302/321/304/304L/314/316/316L/310/310S/430 duplex UNS S31803/S32205/S32750/S32760 ecc.
Application:
Decorazione, costruzione, industria, tubo chimico e fluido
End:
Pianura
Descrizione del prodotto
DN200 ASTM A790 F51 / F55 / F53 / F60 Tubo duplex in acciaio inossidabile
Nome del prodotto: DN200 ASTM A790 F51 / F55 / F53 / F60 Tubo duplex in acciaio inossidabile
Norme: ASTMA790
Materiale: SS201/301/302/321/304/304L/314/316/316L/310/310S/430 Duplex UNS S31803/S32205/S32750/S32760 ecc.
Dimensioni:
OD:10.3 mm - 1219 mm
W.T.:1.24 mm - 59.54 mm
Lunghezza: in base alle richieste del cliente.
Applicazione:Barricate, balaustre, mobili, recinzioni, decorazioni, costruzioni, industria alimentare, ecc.
Composizione chimica, in %
| Designazione UNS | C | - Sì. | M | P | S | Cr | Ni | Mo. | N | Cu |
| massimo | massimo | massimo | massimo | massimo | ||||||
| S31803 (F51) | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 a 0.20 | - |
| S32205 (F60) | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 a 0.20 | - |
| S32750 (F53) | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 a 5.0 | 0.24 a 0.32 | 0.5 massimo |
| S32760 (F55) | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 a 0.30 | 0.50 -1.00 |
| DN | NPS ((Inch) | D (mm) | SCH5S | SCH10S | SCH40S | STD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
