welded steel pipe
"
ASTM laminante a freddo A513 ha saldato i tubi d'acciaio con produzione dei DOM

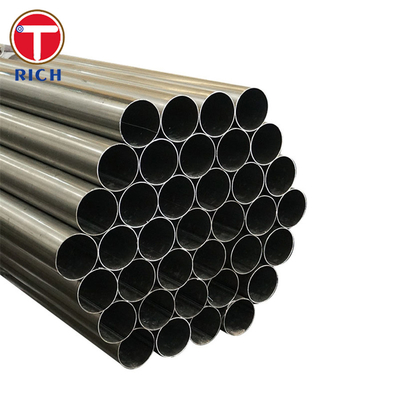

ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size: 10-350mm Applications: for machinery, mechanical enginee 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4.Size range: O.D.:6-350mm W.T.:1-15mm L:max12000mm 5. Packing: In Hexagonal
Metropolitana d'acciaio saldata alluminata rotonda OD127mm*WT1.5mm per le parti automobilistiche
OD127mm*WT1.5mm Aluminized Welded Steel Tubes,steel grade SPCC/SPHC from TORICH ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1010, 1020, 1026 Production: ERW + DOM Steel Grade and Chemical Compositions: Steel Grade C Mn P S Si Cr Mo max max max max min 1008 0.10 0.5 0.035 0.035 1010 0.08-0.13 0.30-0.60 0.035 0.035 1018 0.14-0.20 0.30-0.60 0.035 0.035 1020 0.17-0.23 0.30-0.60 0.035 0.035
Tubi d'acciaio saldati Q235B di GB/T 14291 Q235A per servizio del liquido della miniera
Welded Steel Tubes for Mine Liquid Service GB/T 14291 Q235A Q235B Spec: Material:Q235A Q235B Q345A Q345B Size Range:OD:4-1200mm WT:0.3-200mm General Length:4-12m Tolerance: According to the following tables or customers’ request. TABLE 1 Mechanical Property Grade Tensile strength N/m Lower yield strength / N/m Elongation A% Not less than D≤168.3 D＞168.3 Q235A,Q235B 375 235 15 20 Q295A,Q295B 390 295 13 18 Q345A,Q345B 470 345 13 18 Note : Tensile test arbitration time is based
Tubi d'acciaio saldati per servizio liquido GB/T 14291 Q235A Q235B della miniera
Welded Steel Tubes for Mine Liquid Service GB/T 14291 Q235A Q235B Spec: Material:Q235A Q235B Q345A Q345B Size Range:OD:4-1200mm WT:0.3-200mm General Length:4-12m Tolerance: According to the following tables or customers’ request. Table 3 Outer Diameter,Wall Thicknes,Theoretical Weight and Test Pressure Norminal Outer Diameter(D)/mm Norminal Wall Thickness(S)/mm Theoretical Weight/(kg/m) Test Pressure/MPa Q235A,Q235B Q295A,Q295B Q345A,Q345B 21.3 2.5 1.16 15 15 15 21.3 3 1.35
ASTM A787 ha saldato il tubo meccanico d'acciaio del silenziatore della tubatura del acciaio al carbonio della metropolitana 0.71T
ASTM A787 Welded 0.71T Carbon Steel Mechanical Tubing Muffler Pipe Standard Specification of ASTM A787 Tubing Specification covers round, square, rectangular, and special shape, electric-resistance-welded mechanical tubing, either zinc-coated (galvanized) after welding or produced from aluminum-coated, zinc-coated (galvanized), zinc-iron alloy-coated (galvannealed), 55 % aluminum-zinc alloy-coated, or zinc-aluminum-magnesium alloy-coated steel sheet. Tubing for use as
Il puntone d'acciaio saldato trafilato a freddo durevole della primavera di gas della metropolitana convoglia GB/T 33156
Cold Drawn Welded Steel Tube Gas Spring Strut Pipes GB/T 33156 Products Description Quick Detail: Product name GB/T 33156 Welded Cold Drawn Steel Tubes Gas Spring Strut Pipes Steel Grade E155, E195, E235, E275, E355 Size Range OD range:15-200mm WT range: 0.8-16mm Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm) ID surface 0.4μm Straightness ≤0.5mm/1m Roundness ≤0.5mm Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5 Delivery Condition +C, +LC, +SC, +A, +N
Q195 Q235 Q345 ERW saldato intorno alla metropolitana quadrata dell'acciaio della sezione della cavità del tubo d'acciaio
Q195 Q235 Q345 ERW Welded Round Square Steel Pipe Hollow Section Steel Tube Production: Steel pipe / steel tube Standard: API 5L, ASME, ASTM B36, JIS, DIN, GB8162, GB8163, GB5310, etc. Material: ASTM A106 GRB/ A53 GRB/ API 5L X42, X52, X60, X65, X70GRB/ API 5 CT/ Q345/ ST42/ST37/ ST52. Q195/Q215/Q235/A179etc. Out Diameter: DN10~DN1200, 1/8"~100", 6mm~2400mm Wall Thickness: SCH5~SCH160, STD, XS, XXS, 1mm~120mm Length: 12m, 11.8m, 6m, 5.8m, or as customers required Surface
La metropolitana d'acciaio saldata Q235 rotonda di Erw, annerisce il tubo d'acciaio dipinto Gb/t9711-2011 Psl1 di Erw
GB/T9711-2011 PSL1 Round Pipe Chart of Weight ERW Q235 Welded Steel Tube ERW Casing Pipe GB/T9711-2011 PSL1 Round Pipe Chart of Weight ERW Q235 Welded Steel Tube ERW Casing Pipe Standard: GB/T9711-2011 PSL1,GB/T9711-2011 PSL2 GB/T3091-2008,API SPEC.5L PSL1,API SPEC.5L PSL2, API SPEC.5CT Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C90, T95, P110,Q125 Size: Tubing : 2 3/8", 2 7/8", 3 1/2", 4", 4 1/2“ Casing : 4 1/2", 5", 5 1/2", 6 "5/8", 7&
Astm A523 Plain il tubo saldato senza cuciture dell'estremità/tubo d'acciaio di Erw per alta pressione
Products Description TORICH ASTM A523 Plain End Seamless and ERW Steel Pipe for High-Pressure Product Name Plain End Seamless and ERW Steel Pipe for High-Pressure Standard ASTM A523, A370, A751, E59, ANSI B36.10 Techinique Electric Resisitance Welded Type Seamless and Welded Test Flattening Test, Hydrostatic Test Coatings The pipe shall not be given a mill coating of paint, oil, or any other material either inside or outside Application High Pressure pipe-type electric cables
